Decoiler Straightener Feeder Machine for Handling 0.2～3.2mm Thickness Steel Coil
Decoiler Straightener Feeder Machine for Handling 0.2～3.2mm Thickness Steel Coil
Decoiler Straightener Feeder Machine for Handling 0.2～3.2mm Thickness Steel Coil
Decoiler Straightener Feeder Machine for Handling 0.2～3.2mm Thickness Steel Coil

Decoiler Straightener Feeder Machine for Handling 0.2～3.2mm Thickness Steel Coil

Model
DSF1 Series Combination Uncoiler Straightener Feeder for 0.2～3.2mm Coil Steel High Speed Stamping

Item specifics

Color
Standard white (other colors are available)
Payment
30% T/T as deposit, rest against shipping
Customized Service
Yes
Certificate
ISO, CE

Review

Description

Description of Combination Decoiler Straightener Feeder Machine
The Combination Decoiler Straightener Feeder Machine, also called Uncoiler Straightener Feeder, is a specialized Steel Coil Handling equipment designed to handle steel coils with thicknesses ranging from 0.2mm to 3.2mm. This innovative Combination Uncoiler Straightener Feeder integrates the essential functions of decoiling, straightening, and feeding into one compact unit, offering a comprehensive solution for coil handling. Engineered for precision and versatility, the Decoiler Straightener Feeder Machine ensures seamless and accurate feeding of steel coils into stamping or forming processes. Its user-friendly design and advanced features optimize workflow and enhance operational efficiency. As a key component in modern steel coil handling solutions, this Decoiler Straightener Feeder Machine streamlines the production process, reduces setup times, and improves overall productivity. Overall, the Decoiler Straightener Feeder Machine for 0.2～3.2mm Thickness Steel Coil Handling Solution provides a reliable, efficient, and compact solution for steel coil handling, meeting the diverse needs of steel processing applications.
Thin Plate Uncoiling Straightener Feeder Machine for High speed stamping line

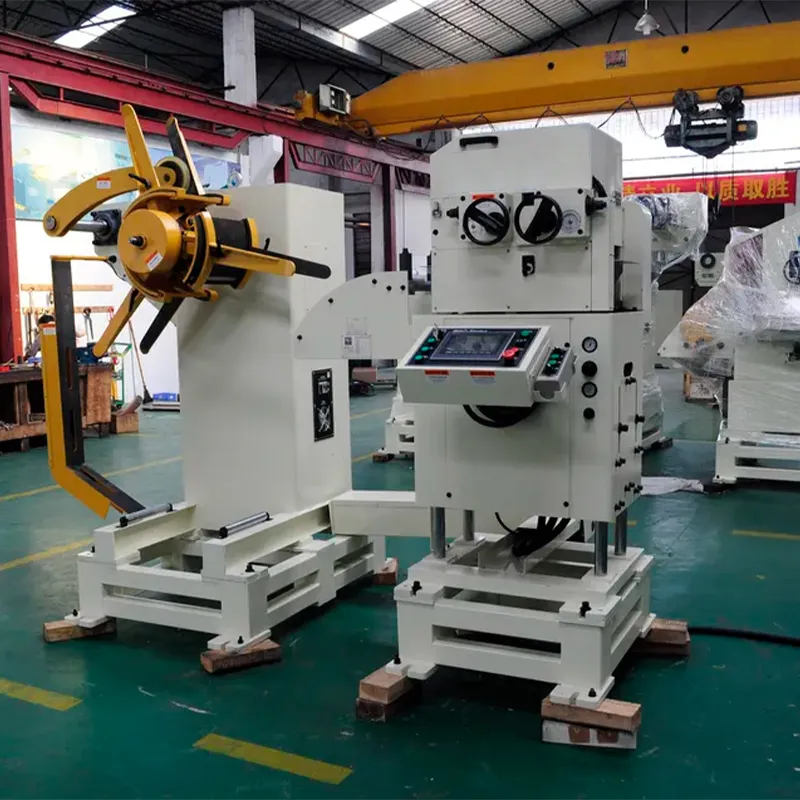

The DSF1 3-in-1 decoiler straightener feeder , also called uncoiler straightener feeder, combines material rack, leveling, and feeding into one compact unit. One person handles all of the feeding, feeding, blocking, folding, leveling, feeding, and changing. Point-controlled operation on a separate console can be used to complete it, which significantly reduces labor costs, effectively resolving the issue of uncoordinated leveling and feeding, and enabling high-speed leveling and feeding. The entire appearance is both powerful and stunning.

The device uses a bottom-feeding technique that can punch, uncoil, and level feed medium and thin plate coils with a thickness of 0.2mm to 3.2mm and a width of 50mm to 400mm. The feeding pressing plate works in tandem with the pressing arm to flatten the material head so that it may enter the machine smoothly. This prevents the coil material from becoming loose.

Features of Combination Decoiler Straightener Feeder Machine
● Handling 50~300mm/50~400mm width steel coil.
● Handling 0.2~3.2mm thickness steel coil.
● Max. steel coil loading: 3000kgs.
● Max.Coil O.D.(mm): Ø 1200
● Max.Coil I.D.(mm): Ø 508
● Feed length: 16~24m/min
● Work roll: upper 4 pcs/down 3 pcs, 7pcs totally.
● Feed roll: 1pc
Specification of Combination Decoiler Straightener Feeder Machine
Model
                    DSF1-300
                   DSF1-400
Stock Width(mm)
50~300
50~400
Stock Thickness(mm)
0.2~3.2
0.2~3.2
Max.Coil Weight(kg)
3000
3000
Max.Coil O.D.(mm)
                       Ø 1200
                       Ø  1200
Coil I.D.(mm)
Ø 508
Ø 508
Feed Length(mm)
400
400
Max.Line Speed(m/min)
16-24
16-24
Work Roll Number
upper4/down3
upper4/down3
Feed Roll number
1
1
Main Motor(kw)
AC2.0
AC2.0
Mandrel Expansion
By manual (pneumatic) / hydraulic
By manual (pneumatic) / hydraulic
Reel Motor(kw)
1.5
1.5
Power (V)
3Phase 220V/380V/50HZ
3Phase 220V/380V/50HZ
Operating Air(Mpa)
0.49
0.49
Application of Combination Decoiler Straightener Feeder Machine
In order to create a high-speed synchronous stamping line for the motor stator and EI piece, it is especially well suited to combine with an S-type leveler, gear feeder, and high-speed punching machine.

Thin Plate Uncoiling Straightener Feeder Machine working with high speed press
Decoiler Part of Thin Plate Uncoiling Straightener Feeder Machine
Uncoiler Part
It contains a loop rack and a motorized uncoiling tool for thin coil material. In order to manage coil processing for extremely difficult materials, the coil hold-down arm is configured in this way.
Straightener Part of Thin Plate Uncoiling Straightener Feeder Machine
Straightener Part
The straightening component may easily be opened for normal maintenance. The roller gap space is adjustable using the handwheel on the turbine shaft. The GCr15 standard was followed in the creation of the straightening rollers.
Company details
Fanty is a manufacturer of decoiler, feeder and press machine. We are providing automated stamping solutions

Fanty machinery focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.

We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line. Fanty machinery has exported machine to more than 30 countries. MORE

FAQ
Q: What kinds of combine press feeding line do you have?

DSF1 series combine uncoiler leveler feeder for 0.2~3.2mm thickness

DSF2 series combine uncoiler leveler feeder for 0.5~4.5mm thickness

DSF3 series combine uncoiler leveler feeder for 0.6~6.0mm thickness

Customization


Q: How can I trust you that combination edcoiler straightener feeder machine pasted testing running before shipping?

1) We can record the testing video for your reference about thin plate decoiler straightener feeder machine.

2) You are welcome to visit us and test machine in our factory.


Q: How is your after sales support about combination decoiler straightener feeder machine?

We provide technical support on line as well as overseas services by skillful technicians.

Q: Can I have a custom designed on combination decoiler straightener feeder machine?

We can make OEM & ODM with customers. We provide and construct each project to individual customer's needs. All of our machine can be custom made based on reasonable requirement.
