Coil Feeder For 0.6~6.0mm Coil Thickness Handling

Coil Feeder For 0.6~6.0mm Coil Thickness Handling

Model: RNC-H Series Press Feeder Equipment for 0.6~6.0mm Thickness Steel Coil Handling

Item specifics

Color: Standard white (other colors are available)

Payment: 30% T/T as deposit, rest against shipping

Customized Service: Yes

Review

Description

Introduction of RNC-H Press Feeder

The RNC-H Series Press Feeder Equipment is a specialized coil feeder designed for handling steel coils with a thickness ranging from 0.6mm to 6.0mm. As a dedicated coil feeder for punch press operations, this Feeder Machine is equipped with advanced servo technology to ensure precise and consistent feeding of steel coils into presses. The Servo Feeder feature of the RNC-H Series offers superior control capabilities, allowing for accurate adjustment of feeding speed and length to accommodate various coil thicknesses within its specified range. Serving as an essential press feeder, the RNC-H Series Press Feeder Equipment plays a pivotal role in enhancing the efficiency and accuracy of metal stamping operations. Overall, the RNC-H Series Press Feeder Equipment for 0.6~6.0mm Thickness Steel Coil Handling provides a reliable and efficient solution for steel coil feeding, ensuring seamless integration with press operations while delivering precision and reliability.

Features of RNC-H Press Feeder

Steel Feeder Equipment for 0.6~6.0mm Coil Thickness Handling

RNC-H series Press Feeder for 0.6~6.0mm Thickness Steel Coil Handling

The RNC-H series Press Feeder Equipment is designed for handling coil thicknesses of 0.6~6.0mm, providing an efficient material feeding solution.

Key Features of RNC-H Press Feeder

● Wide Thickness Range: 0.6mm ~ 6.0mm.

● Material Versatility: Compatible with different materials such as steel, stainless steel, aluminum, and more, accommodating a wide range of production requirements.

● Wide Width Range: 300~600mm.

● Accuracy: ±0.1 mm.

● Release Way: Pneumatic.

Specifications of RNC-H Press Feeder

Model	RNC-300H	RNC-400H	RNC-500H	RNC-600H
Stock Width(mm)	300	400	500	600
Stock Thickness(mm)	0.6~6.0	0.6~6.0	0.6~6.0	0.6~6.0
Release Way	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Cylinder	2 pcs	2 pcs	2 pcs	2 pcs
Roller Dia	Φ90 mm	Φ90 mm	Φ90 mm	Φ90 mm
Accuracy	±0.1 mm	±0.1 mm	±0.1 mm	±0.1 mm

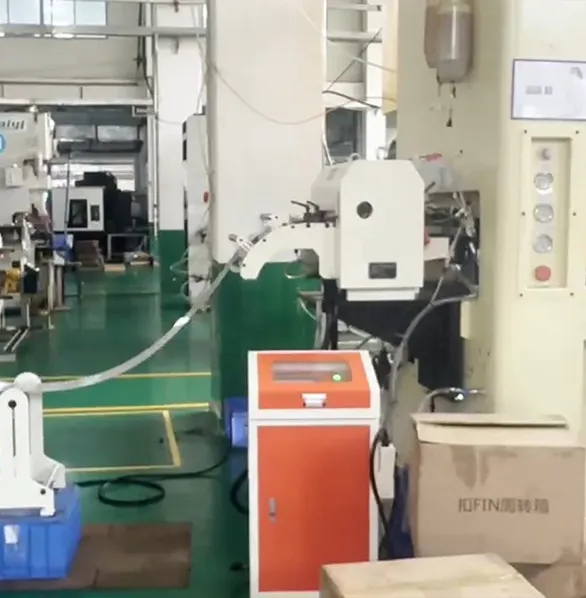

Application of RNC-H Press Feeder

RNC-H series is a servo feeder machine for thicker steel coil handling

Company details

Fanty machinery focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.

We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line. Fanty machinery has exported machine to more than 30 countries. MORE

FAQ

Q: What industries commonly use press feeder machines?

Answer: Press Feeder machines are used in industries such as automotive manufacturing, electronics, packaging, and metal stamping.

Q: Can a press feeder machine handle irregularly shaped materials?

Answer: Yes, many press feeder machines are equipped with adjustable features to accommodate various shapes and sizes.

Q: How does a press feeder machine improve production efficiency?

Answer: By automating the feeding process, press feeder machines reduce idle time, eliminate inconsistencies, and minimize material waste.

Q: Are press feeder machines easy to operate?

Answer: Yes, most modern press feeder machines feature user-friendly interfaces and intuitive controls for easy operation.
