Precise Mechanical Gripper Feeder for High Speed Stamping Line
- Model
- JSG Series High Speed Precise Mechanical Gripper Feeder
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Certificate
- ISO, CE
Review
Description
FANTY · JSG Series · Gripper Feeder
Precise Mechanical Gripper Feeder for High Speed Stamping Line
The Precise Mechanical Gripper Feeder is a specialized coil feeder designed for high-speed stamping lines — material from 0-2mm, widths of 0–100mm, ±0.02mm accuracy.
Send us your coil size, material and press data, and our engineers will confirm the right gripper feeder configuration for your line before you order.
At a glance
- 0-2mmthickness range
- 0–100mmmax width
- ±0.02mmaccuracy
- CE / ISOcertification
Application
Where This Gripper Feeder Works
Typical parts and production lines that this gripper feeder feeds or supports.
Automotive stamping
Progressive-die parts for chassis, brackets and seat frames.
Electronics connectors
Tiny pitch terminals, pins and shielding strips.
Appliance parts
Washing-machine drums, refrigerator shelves and metal cabinets.
Metal furniture
Chair bases, table legs and shelving brackets from coil strip.
Why it works
Key Features of the JSG Series
Coil thickness 0-2mm
Handles material from 0-2mm, so one machine covers your light and heavy gauges.
Width range 0–100mm
Strip and coil widths to 0–100mm are supported across the model range.
±0.02mm accuracy
±0.02mm repeatability keeps progressive-die parts consistent part after part.
High-speed feeding
Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy.
Precise pitch control
Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts.
Quick-release setup
Tool-less roller gap and feed-length adjustments reduce changeover time between jobs.
Specifications
JSG Series Technical Specifications
| Model | JSG50 | JSG80 |
|---|---|---|
| Feed angle | 165° | 140° |
| Feed length | 0-50mm | 0-50mm |
| Material thickness | 0-2mm | 0-2mm |
| Material width | 0–100mm | 0–100mm |
| Stock | 1200spm | 1000spm |
| Repeat accuracy | ±0.02mm | ±0.02mm |
| Release angle | 60° | 60° |
| Air pressure | 490-590kpa | 490-590kpa |
| Lubrication way | Forced lubrication | Forced lubrication |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

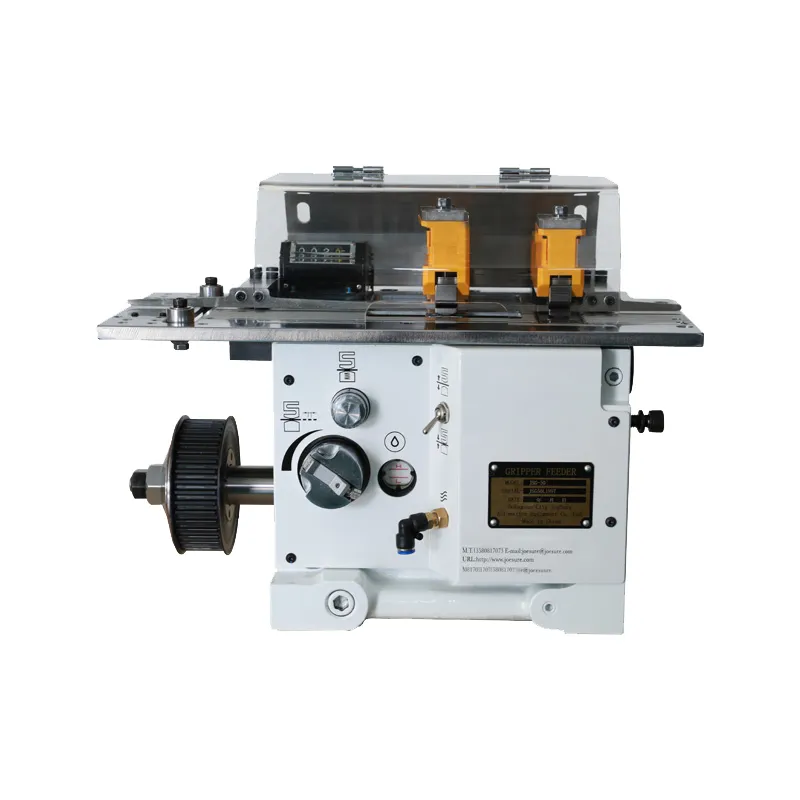

JSG Series assembly at the FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The JSG Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Strip entry
Material is guided into the feeder from the upstream coil line.
- 02
Clamp & feed
Rollers or grippers clamp and advance the strip by the programmed pitch.
- 03
Press stroke
The press stamps while the feeder holds position.
- 04
Release & return
Feeder releases and returns to the start position for the next cycle.
FAQ
Gripper Feeder Questions, Answered
What press types are these feeders compatible with?
Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model.
What is the maximum feeding speed?
Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness.
What feeding accuracy can I expect?
Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm.
What strip thickness range is supported?
NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm.
How is the feeder controlled?
Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage.
Ready to put the JSG Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
