Precision Zig Zag Servo Feeder Machine for Circle Stamping Blanking Line
- Model
- NCP Series Precision Zig Zag Servo Feeder Machine
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Certificate
- ISO, CE
- Customized Service
- Yes
Review
Description
FANTY · NCP Series · Zigzag Feeder
Precision Zig Zag Servo Feeder Machine for Circle Stamping Blanking Line
the Precision Zigzag Servo Feeder Machine is a specialized coil feeder designed for circle stamping blanking lines — material from 0.2-2.0 mm, speeds of 20 m/min.
Send us your coil size, material and press data, and our engineers will confirm the right zig-zag feeder configuration for your line before you order.
At a glance
- 0.2-2.0 mmthickness range
- 20 m/minworking speed
- Yaskawa, Japanmotor
- CE / ISOcertification
Application
Where This Zig-Zag Feeder Works
Typical parts and production lines that this zig-zag feeder feeds or supports.
Automotive stamping
Progressive-die parts for chassis, brackets and seat frames.
Electronics connectors
Tiny pitch terminals, pins and shielding strips.
Appliance parts
Washing-machine drums, refrigerator shelves and metal cabinets.
Metal furniture
Chair bases, table legs and shelving brackets from coil strip.
Why it works
Key Features of the NCP Series
Coil thickness 0.2-2.0 mm
Handles material from 0.2-2.0 mm, so one machine covers your light and heavy gauges.
20 m/min operation
Running at 20 m/min to keep pace with high-speed press cycles.
Yaskawa, Japan motor
Fitted with Yaskawa, Japan drive as specified in the factory data sheet.
High-speed feeding
Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy.
Precise pitch control
Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts.
Quick-release setup
Tool-less roller gap and feed-length adjustments reduce changeover time between jobs.
Specifications
NCP Series Technical Specifications
| Model | NCP-200 | NCP-300 | NCP-400 | NCP-500 | NCP-600 | NCP-800 |
|---|---|---|---|---|---|---|
| Coil Width | 165° | 140° | 165° | 140° | 140° | 140° |
| Coil Thickness | 0.2-2.0 mm | 0.2-2.0 mm | 0.2-2.0 mm | 0.2-2.0 mm | 0.2-2.0 mm | 0.2-2.0 mm |
| Release | Pneumatic Type Releasing System | Pneumatic Type Releasing System | Pneumatic Type Releasing System | Pneumatic Type Releasing System | Pneumatic Type Releasing System | Pneumatic Type Releasing System |
| Roll Pressure | Spring Type | Spring Type | Spring Type | Spring Type | Spring Type | Spring Type |
| Feed Roll | Upper Roll 1pc, Bottom Roll 1pc | Upper Roll 1pc, Bottom Roll 1pc | Upper Roll 1pc, Bottom Roll 1pc | Upper Roll 1pc, Bottom Roll 1pc | Upper Roll 1pc, Bottom Roll 1pc | Upper Roll 1pc, Bottom Roll 1pc |
| Feed Length | Max. 9999.99 mm | Max. 9999.99 mm | Max. 9999.99 mm | Max. 9999.99 mm | Max. 9999.99 mm | Max. 9999.99 mm |
| Speed | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min | Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min |
| Left Center Displacement | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Servo Motor | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan |
| Servo Drive | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan | Yaskawa, Japan |
| PLC | Mitsubishi, Japan | Mitsubishi, Japan | Mitsubishi, Japan | Mitsubishi, Japan | Mitsubishi, Japan | Mitsubishi, Japan |
| Touch Screen | Weinview, Taiwan | Weinview, Taiwan | Weinview, Taiwan | Weinview, Taiwan | Weinview, Taiwan | Weinview, Taiwan |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

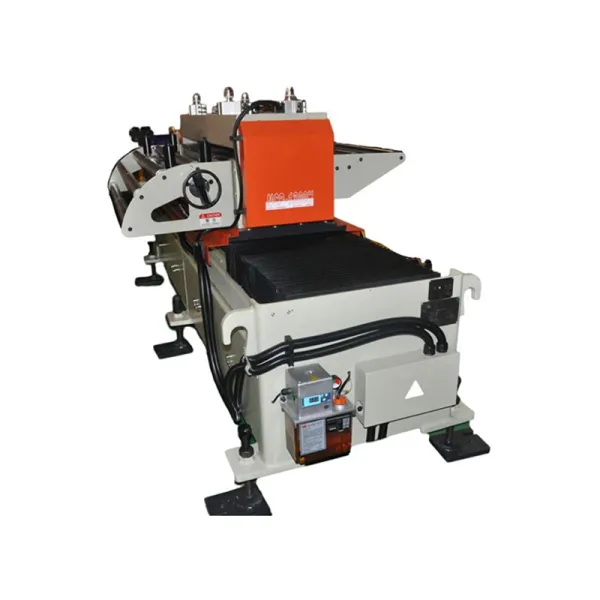

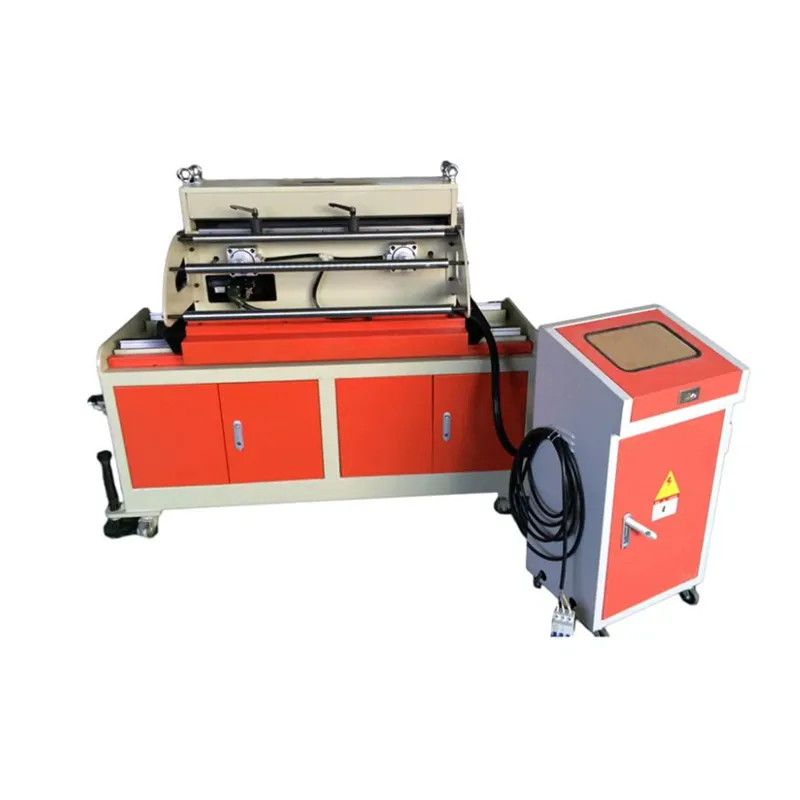

NCP Series assembly at the FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The NCP Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Strip entry
Material is guided into the feeder from the upstream coil line.
- 02
Clamp & feed
Rollers or grippers clamp and advance the strip by the programmed pitch.
- 03
Press stroke
The press stamps while the feeder holds position.
- 04
Release & return
Feeder releases and returns to the start position for the next cycle.
On the assembly floor before test.

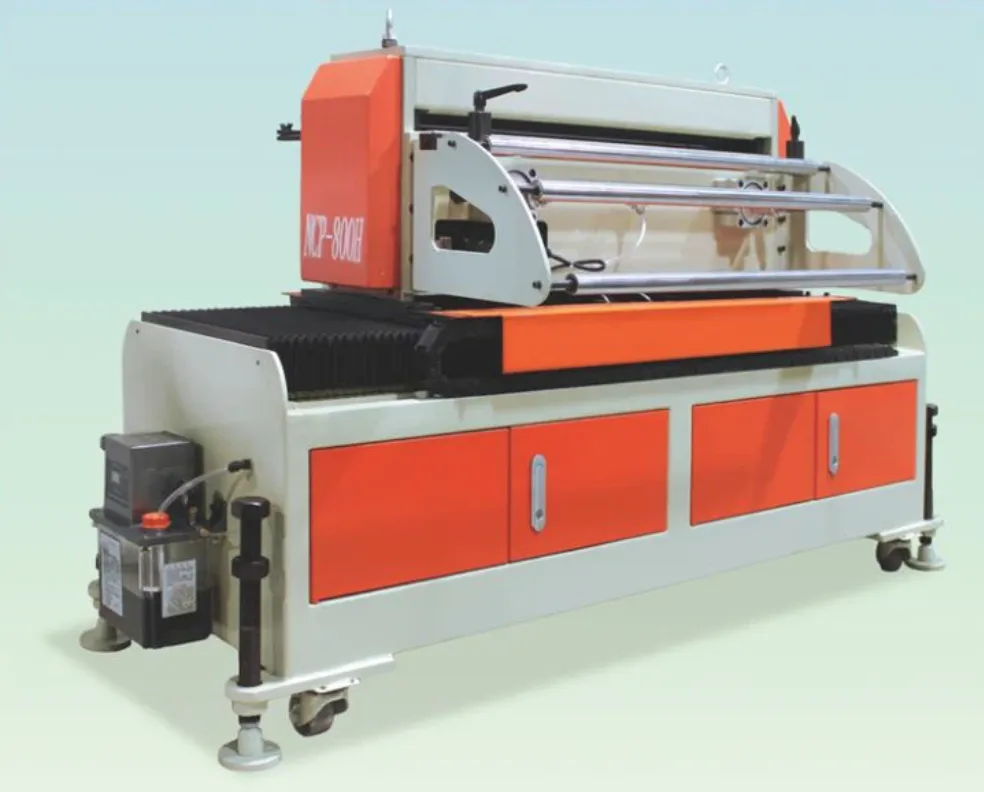

Units in production at the factory.

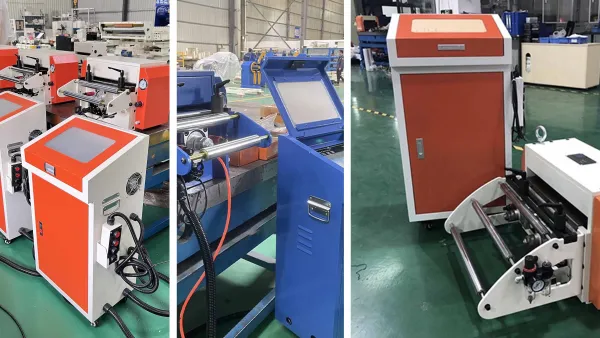

Machines prepared for delivery.
FAQ
Zig-Zag Feeder Questions, Answered
What press types are these feeders compatible with?
Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model.
What is the maximum feeding speed?
Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness.
What feeding accuracy can I expect?
Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm.
What strip thickness range is supported?
NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm.
How is the feeder controlled?
Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage.
Ready to put the NCP Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
