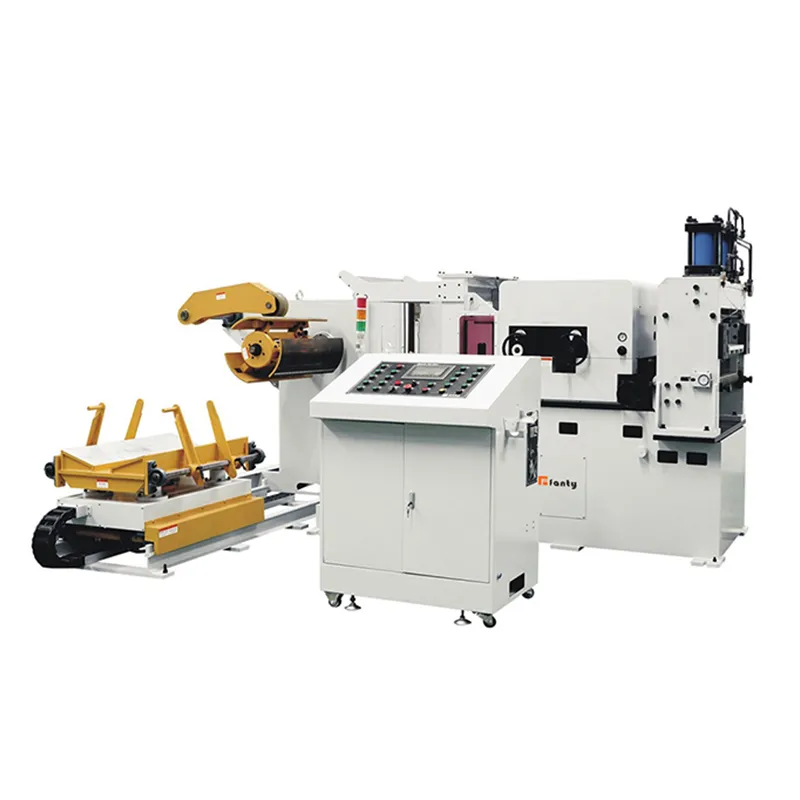

Precision Decoiler Straightener Feeder for 0.6~6.0 mm Thickness Steel Coil Handling Solution
- Model
- DSF3 Series Precision Uncoiler Straightener Feeder
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Certification
- CE,ISO
Review
Description
FANTY · DSF3 Series · Decoiler Straightener Feeder for 0.6～6.0mm Steel Coil The Precision Decoiler Straightener Feeder is a specialized Steel Coil Handling equipment designed for handling steel coils — widths of 50–400 mm, material from 0.6–6.0 mm, coils to 5000 kg. Send us your coil size, material and press data, and our engineers will confirm the right decoiler straightener feeder configuration for your line before you order. Application Typical parts and production lines that this decoiler straightener feeder feeds or supports. Chassis brackets, seat rails and structural stampings from coil. Shield cans, connector shells and precision brackets. Metal cabinets, drums and panels for white goods. Hardware, fittings and custom stampings from steel coil. Why it works Strip and coil widths to 50–400 mm are supported across the model range. Handles material from 0.6–6.0 mm, so one machine covers your light and heavy gauges. Coils up to 5000 kg can be loaded, so the line runs longer between changes. Accepts coil outside diameters up to φ1400 mm without extra handling. Uncoiling, straightening and feeding in one integrated unit saves floor space and simplifies line layout. A single control panel manages uncoil tension, straightener roller gap and feed pitch together. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. DSF3 Series assembly at the FANTY factory workshop. Built by FANTY The DSF3 Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Coil is placed on the mandrel and gripped by hydraulic or pneumatic expansion. Strip passes through straightener rollers that remove coil curvature. Servo feeder advances the strip to the exact pitch length every cycle. Press forms the part while the feeder holds position. On the assembly floor before test. Units in production at the factory. fanty factory. FAQ Models cover 0.2 mm to 6.0 mm depending on the series. Each model page lists the exact thickness and width rating. A typical 3-in-1 unit needs 3–5 m of line length, compared with 6–10 m for separate machines. Exact dimensions are on the product page. Yes. We match the feeder interface, control voltage and line height to your press. Send us your press model and we confirm compatibility. Multi-roll straighteners reduce coil set to within 0.5 mm per metre, depending on material grade and thickness. Standard combinations ship in 25–35 working days. Custom specs may extend to 45 days. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.Precision Decoiler Straightener Feeder for 0.6~6.0 mm Thickness Steel Coil Handling Solution
At a glance
Where This Decoiler Straightener Feeder Works
Automotive stamping
Electronics hardware
Appliance manufacturing
General metalworking
Key Features of the DSF3 Series
Width range 50–400 mm
Coil thickness 0.6–6.0 mm
5000 kg coil capacity
Coil OD up to φ1400 mm
Compact footprint
Synchronized control
DSF3 Series Technical Specifications
Model DSF3-400 DSF3-600 DSF3-800 DSF3-1000 DSF3-1300 Stock Width(mm) 50–400 50–600 70–800 70–1000 70–1300 Stock Thickness(mm) 0.6–6.0 0.6–6.0 0.6–6.0 0.6–6.0 0.6–6.0 Max.Coil Weight(kg) 5000 5000 7000 7000 7000 Max.Coil O.D.(mm) φ1400 φ1400 φ1400 φ1400 φ1400 Coil I.D.(mm) φ508 φ508 φ508 φ508 φ508 Feed Length(mm) 500 500 500 500 500 Max.Line Speed(m/min) 16-24 16-24 16-24 16-24 16-24 Work Roll Number upper4/down3 upper4/down3 upper4/down3 upper4/down3 upper4/down3 Feed Roll number 1 1 1 1 1 Main Motor(kw) AC5.5 AC7.5 AC7.5 AC11.0 AC11.0 Mandrel Expansion hydraulic hydraulic hydraulic hydraulic hydraulic Reel Motor(kw) 2.2 2.2 3.7 3.7 3.7 Power (V) 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ Operating Air(Mpa) 0.49 0.49 0.49 0.49 0.49

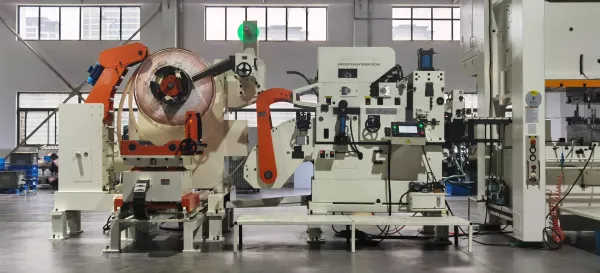

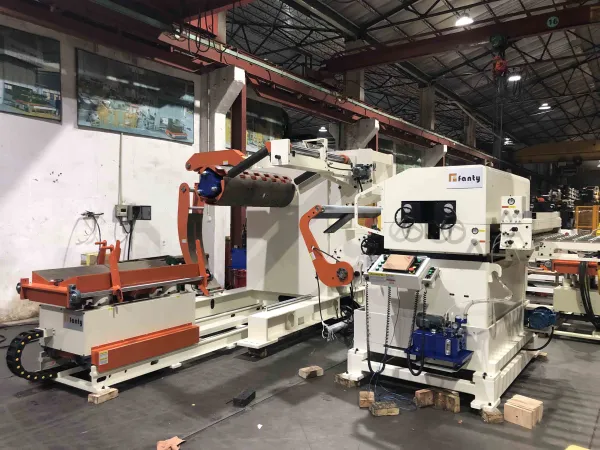

Assembled, Test-Run and Packed in Our Factory
Load coil
Uncoil & straighten
Feed to press
Stamp & eject
Decoiler Straightener Feeder Questions, Answered
What thickness range does this combination handle?
How much floor space does the combination need?
Can I use this with any punch press?
What straightening accuracy is achieved?
What is the delivery time?
Ready to put the DSF3 Series to work on your line?
