H-Frame Gantry punch press for High-Speed Precision Stamping
- Model
- GP series Gantry Punching Machine
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Customized Service
- Yes
Review
Description
FANTY · GP Series · High Speed Punch Press Machine
H-Frame Gantry punch press for High-Speed Precision Stamping
The Punch Press for High-Speed Precision Stamping is a specialized machine for high-speed precision stamping applications — 65 t of pressing force, strokes of 30 mm, speeds of 200-800 spm.
Send us your coil size, material and press data, and our engineers will confirm the right high-speed punch press configuration for your line before you order.
At a glance
- 65 tpress capacity
- 30 mmstroke
- 200-800 spmworking speed
- 200 mmmax width
- 19motor
Application
Where This High-Speed Punch Press Works
Typical parts and production lines that this high-speed punch press feeds or supports.
Automotive stamping
Progressive-die parts for body, chassis and powertrain components.
Appliance parts
Metal cabinets, drums, shelves and panels for home appliances.
Electronics hardware
Shield cans, heat sinks, connector shells and brackets.
Construction fittings
Brackets, fasteners, hinges and structural metal parts.
Why it works
Key Features of the GP Series
65 t capacity
65 t of pressing force for blanking, piercing and forming operations.
30 mm stroke
Stroke range of 30 mm suits different part heights and die sets.
200-800 spm operation
Running at 200-800 spm to keep pace with high-speed press cycles.
Widths up to 200 mm
Strip and coil widths to 200 mm are supported across the model range.
Rigid frame construction
Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality.
Precision slide guiding
Eight-point or box-type guiding maintains die alignment and extends tool life.
Specifications
GP Series Technical Specifications
| Model | GPH-65 | GPH-80 | GPH-125 | GPH-220 | GPH-300/300L | GPH-360 | GPH-400/400L |
|---|---|---|---|---|---|---|---|
| Capacity (t) | 65 | 80 | 125 | 220 | 300 | 360 | 400 |
| Rated Tonnage Point | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Stroke Length (mm) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Number per minute (S.P.M) | 200-800 | 200-700 | 150-700 | 150-600 | 100-450 | 75-350 | 60-300 |
| Die height (mm) | 350 | 380 | 420 | 440 | 460 | 460 | 480 |
| Slider Adjustment (mm) | 50 | 500 | 60 | 60 | 60 | 60 | 60 |
| Bolster Area (mm) | 950x650 | 1100x750 | 1400x850 | 2000x1000 | 2300/2500x1000 | 2500x1000 | 2800/3000x1200 |
| Slider Area (mm) | 950x420 | 1100x500 | 1400x600 | 2000x900 | 2300/2500x900 | 2500x900 | 2800/3000x900 |
| Material Width (mm) | 200 | 200 | 300 | 300 | 400 | 400 | 600 |
| Main Motor(kw) | 19 | 22 | 37 | 45 | 45 | 75 | 75 |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

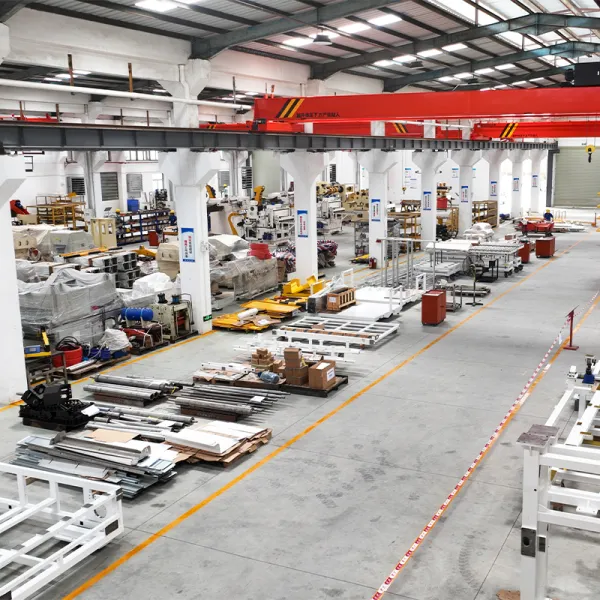

FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The GP Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Die mounting
Upper and lower dies are aligned and clamped securely.
- 02
Strip feeding
Feeder advances the strip to the next pitch position.
- 03
Stamp stroke
Slide descends and the die forms, cuts or pierces the material.
- 04
Part ejection
Parts drop through the die or are carried out by a conveyor.

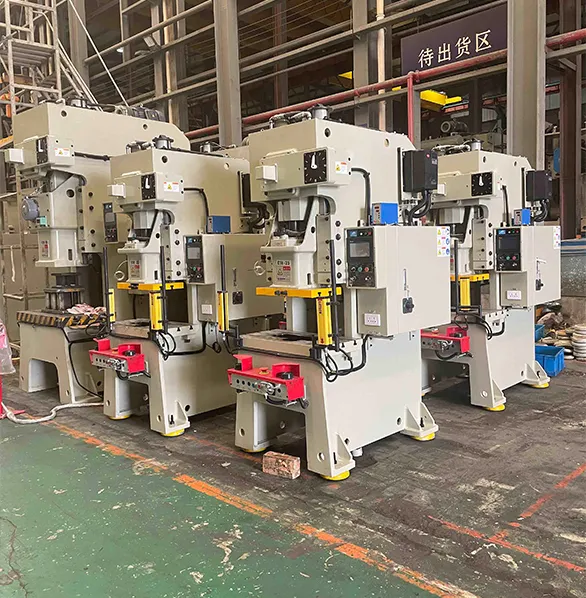

On the assembly floor before test.
Units in production at the factory.
Machines prepared for delivery.
FAQ
High-Speed Punch Press Questions, Answered
What tonnage range do you offer?
We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations.
What is the maximum stamping speed?
High-speed models reach 800–1,200 SPM depending on stroke length and die complexity.
What die sizes fit these presses?
Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility.
What safety features are included?
Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available.
Can the press voltage be customized?
Yes. Motor and control voltages are configured to your local standard before shipment.
Ready to put the GP Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
