High-Precision Punch Press for Auto Part Stamping
- Model
- C1N Series High-Precision Punch Press
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Customized Service
- Support
Review
Description
FANTY · C1N Series · Precision Punching Machine
High-Precision Punch Press for Auto Part Stamping
The punch press machine is a high Precision Punch Press for Auto Part Stamping. The C1N Series is built by FANTY as a factory-direct precision punch press for coil-fed press lines — speeds of 120–180 spm, strokes of 130 mm.
Send us your coil size, material and press data, and our engineers will confirm the right precision punch press configuration for your line before you order.
At a glance
- 120–180 spmworking speed
- 130 mmstroke
- 2.2x6motor
- CE / ISOcertification
Application
Where This Precision Punch Press Works
Typical parts and production lines that this precision punch press feeds or supports.
Automotive stamping
Progressive-die parts for body, chassis and powertrain components.
Appliance parts
Metal cabinets, drums, shelves and panels for home appliances.
Electronics hardware
Shield cans, heat sinks, connector shells and brackets.
Construction fittings
Brackets, fasteners, hinges and structural metal parts.
Why it works
Key Features of the C1N Series
120–180 spm operation
Running at 120–180 spm to keep pace with high-speed press cycles.
130 mm stroke
Stroke range of 130 mm suits different part heights and die sets.
2.2x6 motor
Fitted with 2.2x6 drive as specified in the factory data sheet.
Rigid frame construction
Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality.
Precision slide guiding
Eight-point or box-type guiding maintains die alignment and extends tool life.
Overload protection
Hydraulic overload clutch protects the press and die from damage during misfeeds.
Specifications
C1N Series Technical Specifications
| Model | C1N-15 | C1N-25A | C1N-25 | C1N-35 | C1N-45 | C1N-60 | C1N-80 |
|---|---|---|---|---|---|---|---|
| Nominal Pressure (Kn) | 150 | 250 | 250 | 350 | 450 | 600 | 800 |
| Variable Stroke Per Minute (s.p.m) | 120–180 | 60–140 | 60–140 | 130–200 | 40–120 | 110–180 | 40–100 |
| Fixed Stroke Per Minute (s.p.m) | 130 | 110 | 110 | 85 | 75 | 65 | 65 |
| Stroke (mm) | 60 | 80 | 60 | 30 | 70 | 40 | 80 |
| Die Height (mm) | 200 | 195 | 200 | 215 | 220 | 235 | 250 |
| Slide Adjustment (mm) | 50 | 50 | 50 | 55 | 60 | 75 | 80 |
| Slide Area (mm) | 300x230x50 | 360x250x50 | 400x300x60 | 500x360x70 | 560x420x70 | 560x420x70 | 560x420x70 |
| Bolster Area (mm) | 680x300x70 | 680x300x70 | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 | 1000x550x90 |
| Shank Hole (mm) | φ38.1 | φ38.1 | φ38.1 | φ38.1 | φ38.1 | φ50 | φ50 |
| slide Adjust Device | Manual Operation | Manual Operation | Manual Operation | Manual Operation | Manual Operation | Manual Operation | Manual Operation |
| Motor (KW) | 2.2x6 | 4x4 | 4x4 | 4x4 | 5.5x4 | 5.5x4 | 7.5x4 |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

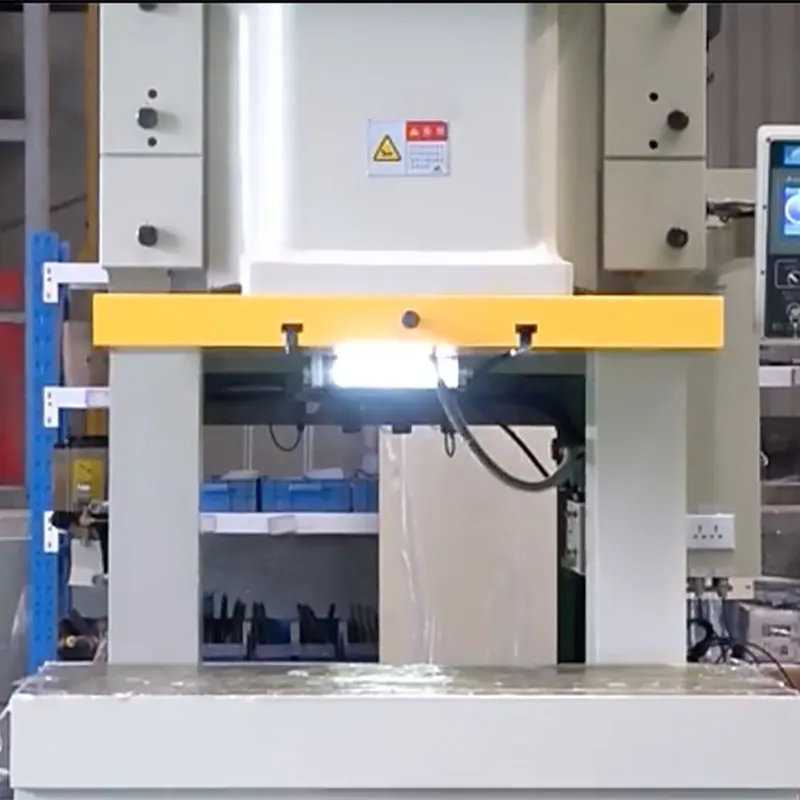

C1N Series work table.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The C1N Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Die mounting
Upper and lower dies are aligned and clamped securely.
- 02
Strip feeding
Feeder advances the strip to the next pitch position.
- 03
Stamp stroke
Slide descends and the die forms, cuts or pierces the material.
- 04
Part ejection
Parts drop through the die or are carried out by a conveyor.
On the assembly floor before test.
stock at the factory.
products units in the stamping production.
FAQ
Precision Punch Press Questions, Answered
What tonnage range do you offer?
We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations.
What is the maximum stamping speed?
High-speed models reach 800–1,200 SPM depending on stroke length and die complexity.
What die sizes fit these presses?
Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility.
What safety features are included?
Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available.
Can the press voltage be customized?
Yes. Motor and control voltages are configured to your local standard before shipment.
Ready to put the C1N Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
