Hydraulic Decoiler for Smooth Steel Coil Unwinding
- Model
- MT Series Efficient Hydraulic Decoiler
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Certificate
- ISO, CE
- Customized Service
- Yes
Review
Description
FANTY · MT Series · Hydraulic Decoiler
Hydraulic Decoiler for Smooth Steel Coil Unwinding
A Hydraulic Decoiler is a decoiler machine with a hydraulic expansion way. It is a type of coil handling equipment — widths of 200mm, material from 0.1–1.6mm, coils to 1 t.
Send us your coil size, material and press data, and our engineers will confirm the right hydraulic decoiler configuration for your line before you order.
At a glance
- 200mmmax width
- 0.1–1.6mmthickness range
- 1 tcoil capacity
- Ø1200mmmax coil OD
Application
Where This Hydraulic Decoiler Works
Typical parts and production lines that this hydraulic decoiler feeds or supports.
Automotive stamping
Structural brackets and frames from heavy steel coil.
Trailer & chassis parts
Long structural members fed from thick-gauge coil.
Appliance panels
Cabinet and housing blanks from mid-gauge strip.
Hardware & brackets
Angle brackets and joining plates in volume.
Why it works
Key Features of the MT Series
Widths up to 200mm
Strip and coil widths to 200mm are supported across the model range.
Coil thickness 0.1–1.6mm
Handles material from 0.1–1.6mm, so one machine covers your light and heavy gauges.
1 t coil capacity
Coils up to 1 t can be loaded, so the line runs longer between changes.
Coil OD up to Ø1200mm
Accepts coil outside diameters up to Ø1200mm without extra handling.
Hydraulic expansion
Cylinder-driven mandrel grips heavy coils quickly and uniformly.
Tension-controlled payout
Brake or drive control keeps strip tension steady into the straightener.
Specifications
MT Series Technical Specifications
| Model | MT-200F | MT-300F | MT-400F | MT-500F | MT-600F |
|---|---|---|---|---|---|
| Coil Width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Coil Thickness | 0.1–1.6mm | 0.1–3.0mm | 0.1–3.0mm | 0.1–3.0mm | 0.1–3.0mm |
| Coil Loading Weight | 1 t | 2 t | 3 t | 3 t | 5 t |
| Coil I.D. | Ø508mm | Ø508mm | Ø508mm | Ø508mm | Ø508mm |
| Coil O.D. | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

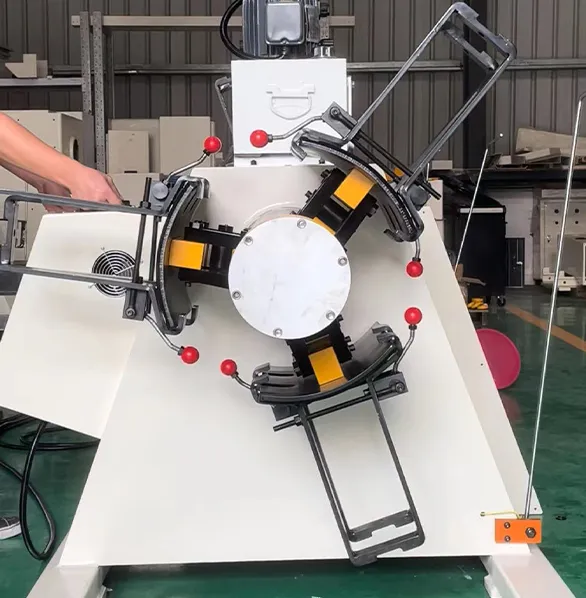

MT Series assembly at the FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The MT Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Frame fabrication
Welded steel frame and mandrel supports are machined to size.
- 02
Hydraulic assembly
Expansion cylinder, drive motor and control panel are fitted and wired.
- 03
Load & run test
Each unit is tested with a full-weight coil to check expansion and payout.
- 04
Export packing
Machines are fixed and protected in wooden crates for shipping.

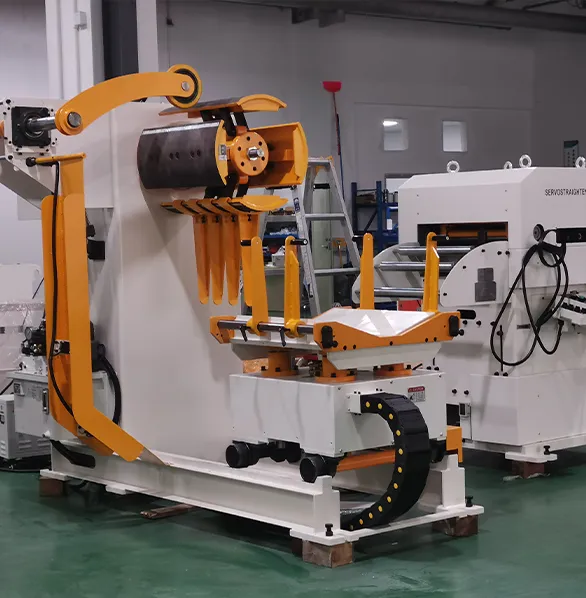

On the assembly floor before test.

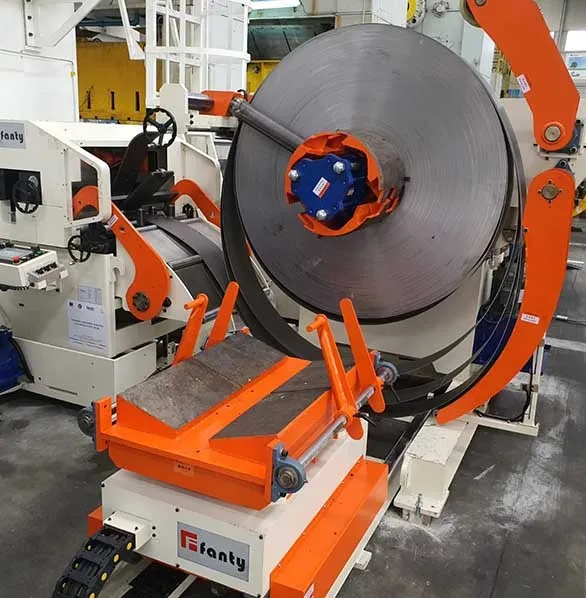

Running Test at the factory.

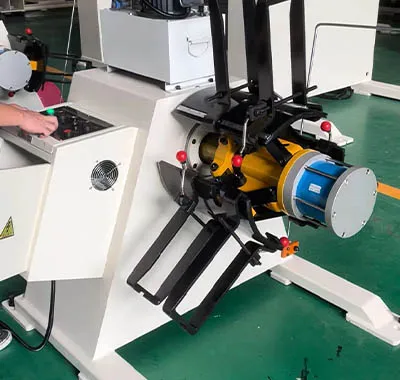

Machines prepared for delivery.
FAQ
Hydraulic Decoiler Questions, Answered
How does hydraulic mandrel expansion work?
A hydraulic cylinder expands the mandrel segments outward to grip the coil inner diameter, giving uniform pressure that is safer and faster than hand-wheel expansion on heavy coils.
What coil weights can it handle?
Hydraulic decoilers are built for coils from roughly 3 to 20 tons. Send your coil weight, OD, ID and width and we will confirm the model and mandrel size.
Can it run with my existing straightener and feeder?
Yes. FANTY builds complete coil-fed press lines, so we can match this decoiler to your existing equipment or supply the full line.
What controls are included?
The control panel covers jog, forward/reverse and speed; heavier models add coil-car and pressing-arm options.
How is the machine shipped?
Each unit is run-tested with coil, then fixed in a wooden export crate. English manuals, wiring diagrams and a starter spares list are supplied.
Ready to put the MT Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
