Double Crankshaft Enclosed Punch Press Machine for Precision Punching
- Model
- D2N Series High-Precision Enclosed Crank Press
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Customized Service
- Support
Review
Description
FANTY · D2N Series · Gantry Punching Machine
Double Crankshaft Enclosed Punch Press Machine for Precision Punching
As the Mechanical Press, this punch press machine for Precision Punching is a specialized equipment for precision punching — speeds of 35～65 spm, strokes of 45 mm.
Send us your coil size, material and press data, and our engineers will confirm the right gantry punch press configuration for your line before you order.
At a glance
- 35～65 spmworking speed
- 45 mmstroke
- 11×4motor
- CE / ISOcertification
Application
Where This Gantry Punch Press Works
Typical parts and production lines that this gantry punch press feeds or supports.
Automotive stamping
Progressive-die parts for body, chassis and powertrain components.
Appliance parts
Metal cabinets, drums, shelves and panels for home appliances.
Electronics hardware
Shield cans, heat sinks, connector shells and brackets.
Construction fittings
Brackets, fasteners, hinges and structural metal parts.
Why it works
Key Features of the D2N Series
35～65 spm operation
Running at 35～65 spm to keep pace with high-speed press cycles.
45 mm stroke
Stroke range of 45 mm suits different part heights and die sets.
11×4 motor
Fitted with 11×4 drive as specified in the factory data sheet.
Rigid frame construction
Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality.
Precision slide guiding
Eight-point or box-type guiding maintains die alignment and extends tool life.
Overload protection
Hydraulic overload clutch protects the press and die from damage during misfeeds.
Specifications
D2N Series Technical Specifications
| Model | D2N-110 | D2N-160 | D2N-200 | D2N-250 | D2N-300 | D2N-400 | D2N-500 | D2N-600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Pressure (Kn) | 1100 | 1600 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 |
| Variable Stroke Per Minute (s.p.m) | 35～65 | 50～110 | 30～55 | 40-85 | 20～50 | 35～70 | 20～40 | 30～60 |
| Fixed Stroke Per Minute (s.p.m) | 45 | 80 | 40 | 60 | 35 | 50 | 30 | 45 |
| Stroke (mm) | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 |
| Max. Die Height (mm) | 400 | 435 | 450 | 400 | 500 | 450 | 550 | 450 |
| Die Height Adjustment (mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Depth Of Throat (mm) | 700×450 | 900×600 | 1000×600 | 1100×600 | 1100×600 | 1100×600 | 1100×600 | 1100×600 |
| Slide Area (mm) | 1400×500×70 | 1600×550×70 | 1850×750×95 | 2300×900×95 | 2400×900×95 | 2500×1000×95 | 3200×1100×100 | 3400×1100×110 |
| Bolster Area (mm) | 1600×650×130 | 1800×760×150 | 2200×940×170 | 2500×1100×170 | 2500×1000×190 | 2700×1100×190 | 3400×1200×220 | 3600×1400×230 |
| Upper Die Weight (kg) | 1000 | 1200 | 1500 | 2000 | 2000 | 2400 | 4000 | 6000 |
| Motor (KW) | 11×4 | 15×4 | 18.5×4 | 22×4 | 30×4 | 37×4 | 45×4 | 75×4 |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

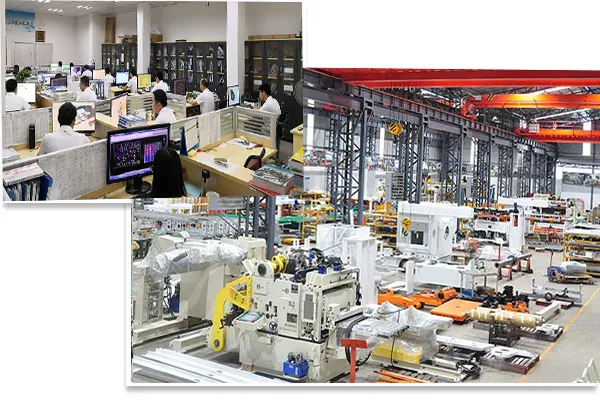

FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The D2N Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Die mounting
Upper and lower dies are aligned and clamped securely.
- 02
Strip feeding
Feeder advances the strip to the next pitch position.
- 03
Stamp stroke
Slide descends and the die forms, cuts or pierces the material.
- 04
Part ejection
Parts drop through the die or are carried out by a conveyor.

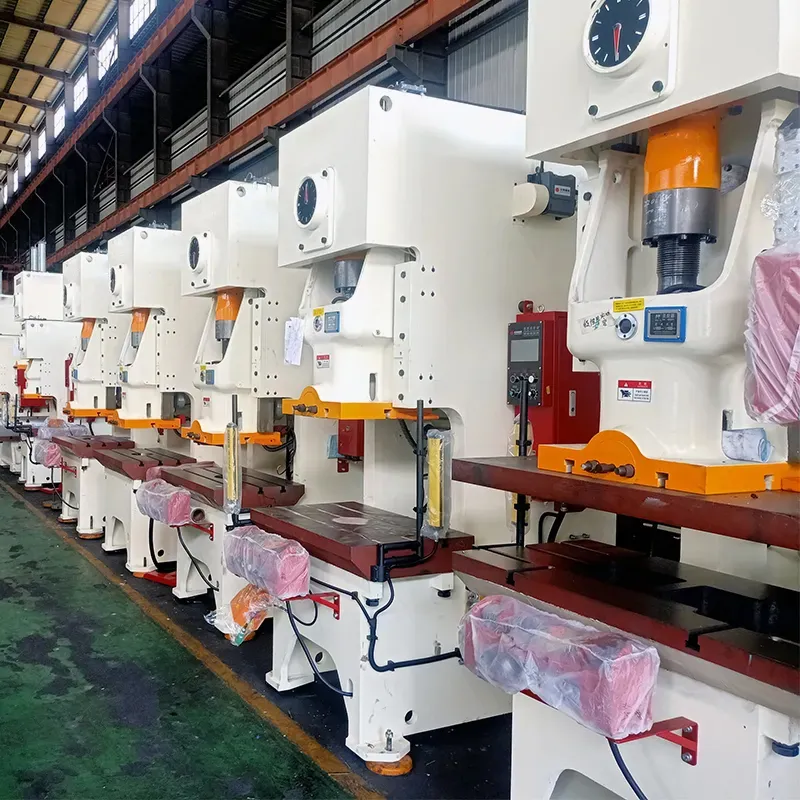

On the assembly floor before test.

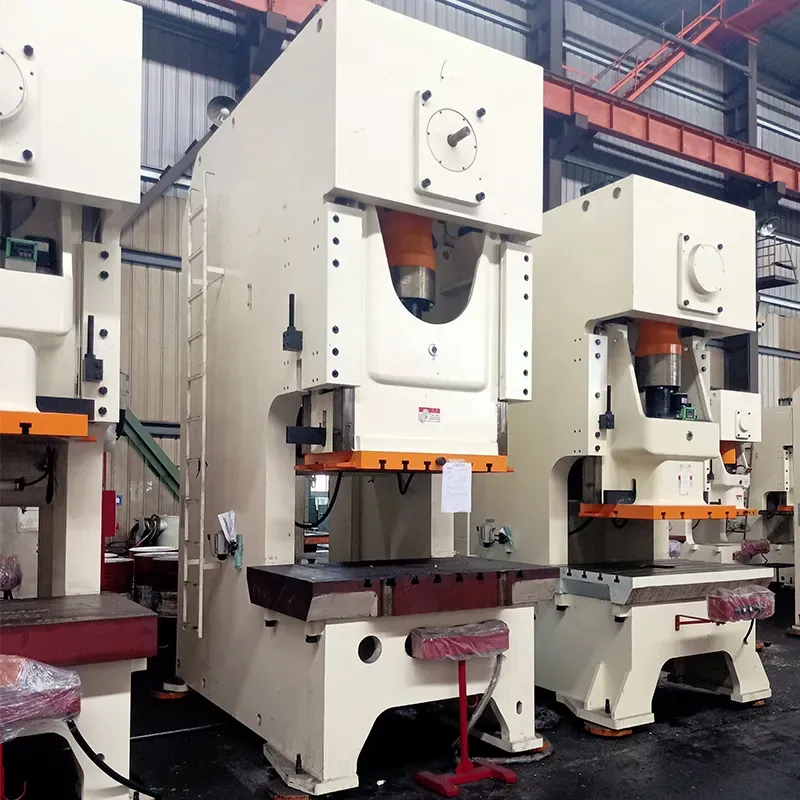

Units in production at the factory.
