High-Speed Press Line 500kgs Steel Coil Loading Flat Decoiler for Sale
- Model
- FU Series Coil Loading Flat Decoiler
Item specifics
- Catagory
- Decoiler Machine
- Brand
- FANTY
- Model
- FU series
- Machine Color
- Standard white (other colors are available)
- FOB Port
- Shenzhen
- Application
- Electrical metal parts/Button/Eyelet stamping
Review
Description
FANTY · FU Series · Flat Decoiler
High-Speed Press Line 500kgs Steel Coil Loading Flat Decoiler for Sale
This Flat Decoiler for Sale. As a type of Horizontal Decoilers, specifically designed for high-speed punch press line — material from 0.1mm–1.0mm, widths of 0.1mm–150mm, coils to 500 kg.
Send us your coil size, material and press data, and our engineers will confirm the right flat decoiler configuration for your line before you order.
At a glance
- 0.1mm–1.0mmthickness range
- 0.1mm–150mmmax width
- 500 kgcoil capacity
- CE / ISOcertification
Application
Where This Flat Decoiler Works
Typical parts and production lines that this flat decoiler feeds or supports.
Automotive stamping
Body panels, brackets and chassis parts from steel coil.
Electrical components
Motor laminations, switch housings and terminal strips.
Appliance metal parts
Washing-machine drums, refrigerator shelves and oven frames.
Construction hardware
Fasteners, brackets and structural fittings from coil steel.
Why it works
Key Features of the FU Series
Coil thickness 0.1mm–1.0mm
Handles material from 0.1mm–1.0mm, so one machine covers your light and heavy gauges.
Width range 0.1mm–150mm
Strip and coil widths to 0.1mm–150mm are supported across the model range.
500 kg coil capacity
Coils up to 500 kg can be loaded, so the line runs longer between changes.
Motorized or hydraulic drive
Coils are unwound smoothly with controlled tension, protecting surface finish and keeping line speed stable.
Expandable mandrel system
Grips the coil inner diameter securely for safe handling during loading and unwinding.
Optional coil loading car
Lifts heavy coils from floor to mandrel, reducing crane time and operator risk.
Specifications
FU Series Technical Specifications
| Parameter | Specification |
|---|---|
| Material thickness: | 0.1mm–1.0mm |
| Steel strip width: | 0.1mm–150mm |
| Coil loading weight: | 500 kg |
| Material Type: | Steel, Aluminum, Cooper etc |
| Coil line Type: | High speed |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.
FU Series assembly at the FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The FU Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Load coil
Place the coil onto the mandrel using a coil car or crane.
- 02
Expand mandrel
Pneumatic or hydraulic expansion grips the coil ID firmly.
- 03
Adjust brake
Set back tension to match line speed and coil weight.
- 04
Feed strip
Strip is pulled smoothly into the downstream machine.
Fanty factory.
Units in wooden case package at the factory.

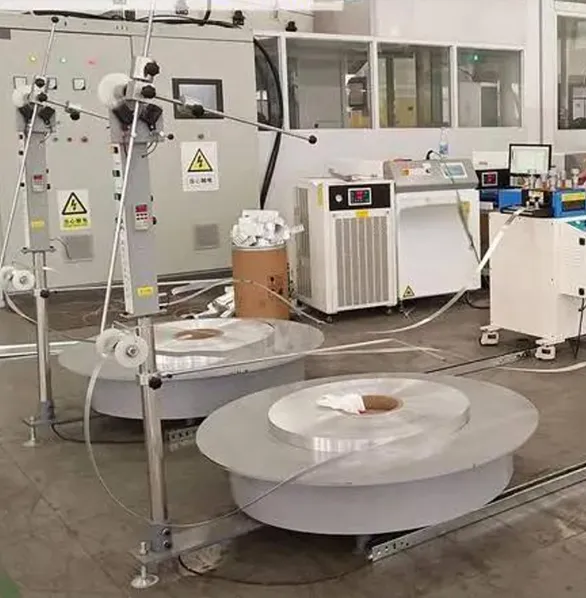

Machines works at customer's stamping line.
FAQ
Flat Decoiler Questions, Answered
What coil sizes can these decoilers handle?
Models range from 200 mm to 1,500 mm coil widths and from 500 kg to 20 tons coil weight. Tell us your coil data and we recommend the right model.
Do you provide voltage and plug customization?
Yes. Control voltage, motor voltage and plug type are configured to your local standard before shipping.
How long is production and delivery?
Standard models ship in 15–25 working days. Custom configurations may need 30–40 days. We confirm the schedule when you place the order.
What spare parts should I keep in stock?
We recommend keeping mandrel segments, brake pads and proximity sensors. A starter spare-parts list is included with every machine.
What is the warranty period?
One year from the bill of lading date. Technical support and replacement parts are available for the lifetime of the machine.
Ready to put the FU Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
