Double Head Decoiler Machine for 400mm Width Coil Unwinding
- Model
- DBMT Series Hydraulic Expansion Double Head Uncoiler Machine
Item specifics
- Color
- Standard white (other colors are available)
- Payment
- 30% T/T as deposit, rest against shipping
- Certificate
- ISO, CE
- Customized Service
- Yes
Review
Description
FANTY · DBMT Series · Double Head Decoiler
Double Head Decoiler Machine for 400mm Width Coil Unwinding
A Double Head Decoiler Machine is designed to enhance efficiency and productivity in coil handling operations — widths of 400 mm, material from 0.35 mm – 1.6 mm, coil OD to Ø1200mm.
Send us your coil size, material and press data, and our engineers will confirm the right double-head decoiler configuration for your line before you order.
At a glance
- 400 mmmax width
- 0.35 mm – 1.6 mmthickness range
- Ø1200mmmax coil OD
- 1200 kg per sidecoil capacity
Application
Where This Double-Head Decoiler Works
Typical parts and production lines that this double-head decoiler feeds or supports.
Automotive stamping
Body panels, brackets and chassis parts from steel coil.
Electrical components
Motor laminations, switch housings and terminal strips.
Appliance metal parts
Washing-machine drums, refrigerator shelves and oven frames.
Construction hardware
Fasteners, brackets and structural fittings from coil steel.
Why it works
Key Features of the DBMT Series
Widths up to 400 mm
Strip and coil widths to 400 mm are supported across the model range.
Coil thickness 0.35 mm – 1.6 mm
Handles material from 0.35 mm – 1.6 mm, so one machine covers your light and heavy gauges.
Coil OD up to Ø1200mm
Accepts coil outside diameters up to Ø1200mm without extra handling.
1200 kg per side coil capacity
Coils up to 1200 kg per side can be loaded, so the line runs longer between changes.
Motorized or hydraulic drive
Coils are unwound smoothly with controlled tension, protecting surface finish and keeping line speed stable.
Expandable mandrel system
Grips the coil inner diameter securely for safe handling during loading and unwinding.
Specifications
DBMT Series Technical Specifications
| Model | DBMT-400 |
|---|---|
| Coil Width | 400 mm |
| Coil Thickness | 0.35 mm – 1.6 mm |
| Coil I.D. | Ø450–530mm |
| Coil O.D. | Ø1200mm |
| Coil Loading Weight | 1200 kg per side |
| Mandrel Expansion | Hydraulic Expansion |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

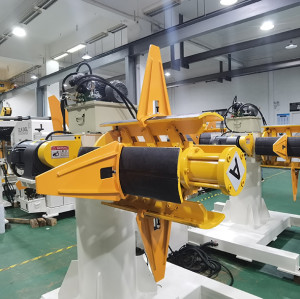

DBMT Series assembly at the FANTY factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The DBMT Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Load coil
Place the coil onto the mandrel using a coil car or crane.
- 02
Expand mandrel
Pneumatic or hydraulic expansion grips the coil ID firmly.
- 03
Adjust brake
Set back tension to match line speed and coil weight.
- 04
Feed strip
Strip is pulled smoothly into the downstream machine.
Fanty Factory for machine assembly.
Units in production at the factory.
Machines prepared for delivery.
FAQ
Double-Head Decoiler Questions, Answered
What coil sizes can these decoilers handle?
Models range from 200 mm to 1,500 mm coil widths and from 500 kg to 20 tons coil weight. Tell us your coil data and we recommend the right model.
Do you provide voltage and plug customization?
Yes. Control voltage, motor voltage and plug type are configured to your local standard before shipping.
How long is production and delivery?
Standard models ship in 15–25 working days. Custom configurations may need 30–40 days. We confirm the schedule when you place the order.
What spare parts should I keep in stock?
We recommend keeping mandrel segments, brake pads and proximity sensors. A starter spare-parts list is included with every machine.
What is the warranty period?
One year from the bill of lading date. Technical support and replacement parts are available for the lifetime of the machine.
Ready to put the DBMT Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
